NES 230/2 M/H 35 MFA SZB (≙ACD) - Mobile vacuum cleaner for aluminium dust
NES 230/2 M/H 35 MFA SZB (≙ACD) - Mobile vacuum cleaner for aluminium dustNES 230/2 M/H 35 MFA SZB (≙ACD) - Mobile vacuum cleaner for aluminium dust

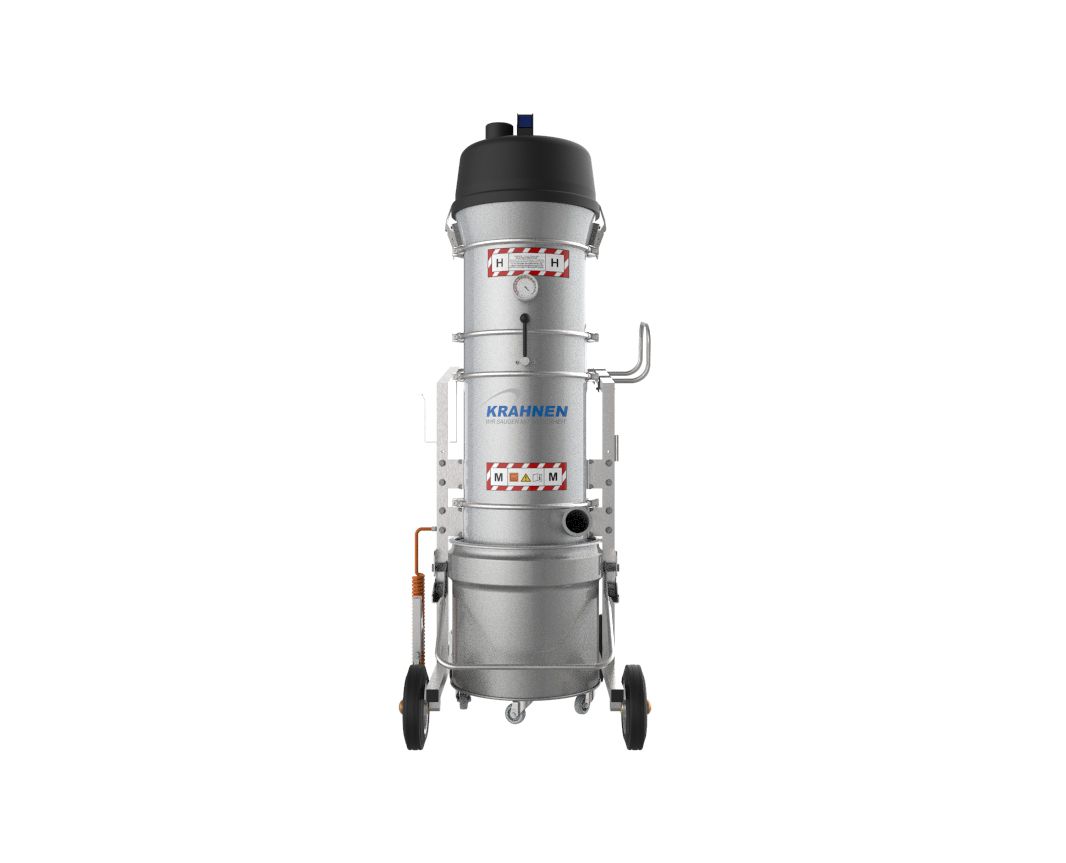

Mobile vacuum cleaner for aluminium dust NES 230/2 M/H 35 MFA SZB (≙ACD)

Due to the increasing mix of materials and the simultaneous processing of different materials in the automotive industry, processing would have to take place in separate workplaces due to the high safety requirements. However, since this is very costly and time-consuming, the processing often takes place in practice at a workplace.

Article number: 2016948

Requests

all in the overview

Description

When machining steel, aluminum and plastic joints, dangerous dust and flying sparks are generated by friction, grinding or removal processes. Improper handling can not only lead to property damage, but can also significantly endanger the occupational safety of people on site.
In order to be able to handle daily business efficiently and without wasting time at a single workstation, the mobile vacuum cleaner for aluminum dust with spark trap offers the right solution.

Maximum safety when wetting with maximum mobility

Compared to conventional water bath pre-separator systems, the injection principle is a great advantage in terms of safety. With the injection system, the suction material is mixed with the wetting agent directly at the suction point. Possible dangers during transport in the suction hose are thus excluded. The "extinguishing function" is a great advantage in particular for the following applications, among others:

  • Suction of explosives
  • Vacuuming substances that react with air
  • Vacuuming hot or glowing materials

Water bath pre-separators also have the disadvantage that it is difficult for the user to detect the saturation of the water bath. A high saturation of the water bath reduces the absorption capacity. This can lead to the dry suction material being drawn through the suspension in a bubble without combining with the wetting agent.

Your benefits

  • Low noise - soundproofed
  • Quickly expandable thanks to modular principle
  • Can also be used as a stationary system
  • Completely electrically conductive, including rollers
  • Complete construction made of stainless steel
  • Extensive accessories available
  • Easy to use and maintain
  • Comfortable container lowering
  • Collection container on wheels
  • Easy and safe emptying
  • Disposal bag optionally available
  • Low wear costs
  • Vacuum gauge for measuring filter load
  • High separation efficiency due to cyclone principle
  • Effective and simple filter cleaning for long service life through manual filter cleaning MFA

Technical data

Designation

NES 230/2 M/H 35 MFA SZB

Voltage consumption [V Hz]

230V ~ 50Hz

Power

2 x 800W (2kW max.)

Container volume [l]

35

Suction volume max. [m³/h]

309

Negative pressure max. [mbar]

210

Filter class

M/H

Filter area [cm²]

3,3

Suction connection 1 [mm]

DN60

Empty weight kg]

41

Sound pressure level 2 [dB (A)]

that. 65

Length [mm]

800

Width (mm]

610

Height [mm]

1565

1 reducible

2 measured at 1m distance ±2 dB (A)

Downloads

Data sheet

Data sheet

Download
Operating manual

Operating manual
