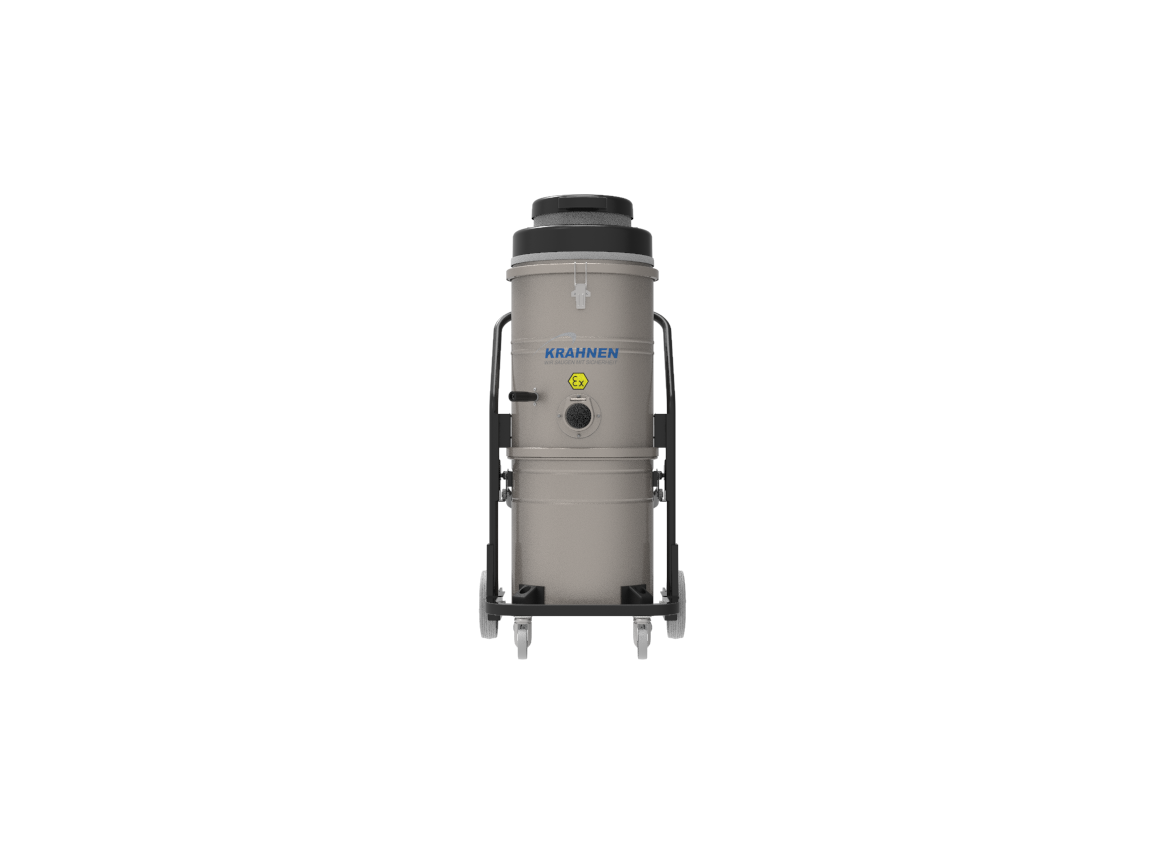

ESS basic 150 50L Zone 22 - Compact vacuum cleaner for Zone 22
ESS basic 150 50L Zone 22 - Compact vacuum cleaner for Zone 22ESS basic 150 50L Zone 22 - Compact vacuum cleaner for Zone 22

Compact vacuum cleaner for Zone 22 ESS basic 150 50L Zone 22

Electrically operated industrial vacuum cleaner on roller trolley for dust Ex zone 22, for collecting flammable and hazardous dust.

Article number: 2019483

Requests

all ESS - EX electric vacuum cleaners at a glance

Description

ESS basic 150 50L Zone 22

Vacuum efficiently in EX Zone 22 with the new compact ESS basic. The electric vacuum cleaner, certified according to ATEX Directive 2014/34/EU, specified by EN 17348, is compact and versatile. With a container volume of 50l, an empty weight of 35kg and dimensions of 56 cm x 57 cm x 125cm, the vacuum cleaner, powered by an 800W motor, impresses with its ease of use and high performance. Equipped with an M filter, the vacuum cleaner can be used in Zone 22.

Your advantages

  • Can be retrofitted quickly thanks to the modular principle
  • Lowerable stainless steel container on castors
  • Large, electrically conductive rollers
  • Filter change quick and without tools
  • Effective and easy filter cleaning
  • Can be used very quickly in the event of malfunctions
  • Very low acquisition and follow-up costs
  • Staubklasse M & H

Furnishing

Included

Collecting container on castors, can be lowered

Circuit breaker Ex

Cyclone separator for better pre-separation of dust and coarse material

Vacuum meter

Plug Ex with 8m cable

Electrically conductive castors and wheels

Optional

Hose holder

Floor nozzle box

Suction hose made of EVA / PE / PU

Electrically conductive suction accessories

Accessory basket

Disposal bag

Technical specifications

Description

ESS basic 150 50L Zone 22

Drive

Bypass Motor Ex 230 V - 50 Hz

Ex marking

EX II 3D Ex h tc IIIB T 135°C Dc
-10°C ≤ Ta ≤ +40°C
EN 17348 DT

Ex-Zone

22

Container volume [l]

50

Power kW]

2,2

Protection class [IP]

65

Suction volume max. [M³ / h]

160

Negative pressure max. [Mbar]

-203

Filter

M & H

Main filter area [m²]

2,6

Suction connection 1 [mm]

DN70

Empty weight kg]

35

Sound pressure level 2 [dB (A)]

that. 67

Length [mm]

560

Width (mm]

570

Height [mm]

1250

1 reducible

2 measured at a distance of 1 m ± 2 dB (A)
