CR EGF 4.0 EX GD 50 A AK - Electric vacuum cleaner pharmaceutical / clean room
CR EGF 4.0 EX GD 50 A AK - Electric vacuum cleaner pharmaceutical / clean roomCR EGF 4.0 EX GD 50 A AK - Electric vacuum cleaner pharmaceutical / clean room

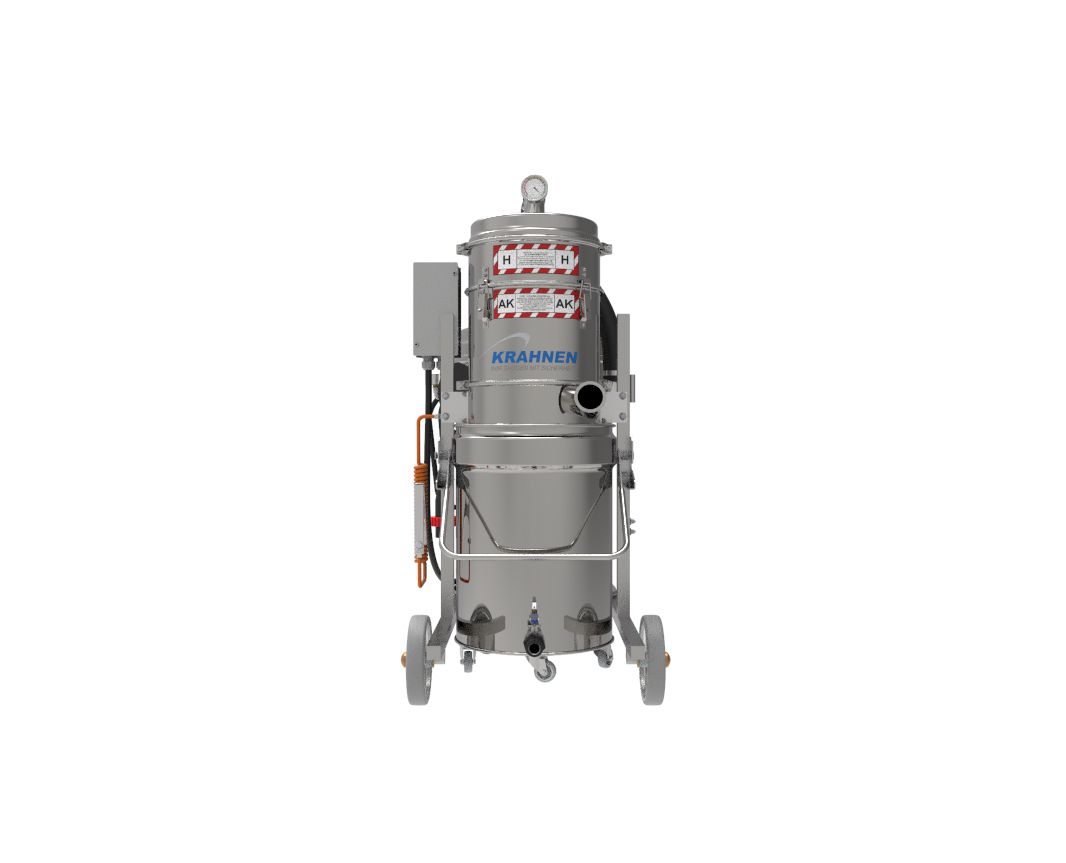

Electric vacuum cleaner pharmaceutical / clean room CR EGF 4.0 EX GD 50 A AK

Electrically operated clean room vacuum cleaner for gas and dust Ex zones 1/2/21/22 for picking up flammable liquids.

Item number: 2018053

Requests

all CR EGF cleanroom vacuum cleaners at a glance

Description

This device, which does not have an ignition source, is intended for wet use. It is suitable for absorbing flammable and non-flammable liquids in potentially explosive areas of Ex zones 1/2/21 and 22. The device is completely electrically conductive (antistatic), whereby the dissipation of electrostatics via electrically conductive wheels to the conductive floor covering he follows.

The operator must be familiar with the type and properties of the suction medium (substance), as well as the possible risks with regard to increased electrostatics due to the substance transport. When vacuuming problematic substances, the device must also be integrated into the operational equipotential bonding using the associated grounding clamp.

This device is supplied with an activated carbon filter for the adsorption of gases and vapors. Depending on the suction material and the application, the user can choose from various activated carbon filter cartridges:

  • Standard (mainly solvents and fuels, polar and non-polar substances)
  • Acid impregnated (mainly used for alkalis)
  • Basic impregnation (mainly used for highly concentrated acids)

Your advantages

  • ATEX type-tested and certified
  • Can be retrofitted quickly thanks to the modular principle
  • Lowerable stainless steel container on castors
  • Large, electrically conductive rollers
  • Completely made of high quality stainless steel
  • Very low acquisition and follow-up costs
  • Quick and tool-free filter change of the 1st filter stage
  • Vacuum gauge for filter control
  • High degree of separation thanks to the cyclone principle
  • Low wear costs
  • Filter housing: electr. conductive polyethylene
  • Various activated charcoal fillings available
  • Can be used very quickly in the event of malfunctions
  • Very light weight
  • Extensive range of accessories (electrically conductive)

Furnishing

Included

Earthing clamp, 2m

Activated carbon filter

Electrically conductive castors and wheels

Vacuum meter

Stainless steel ball valve

10m electric cable and Ex plug

Float switch-off

Optional

Suction hose made of EVA / PE / PU

Accessory basket

Floor nozzle box

Hose holder

Safety Change Saugzubehör

Technical specifications

Description

CR EGF 4.0 EX GD ** A AK

Drive

Side channel blower Ex 400 V - 50 Hz

Ex marking

Ex II 1 / 2GD h IIB IP 65T (200 ° C)

Ex-Zone

1 / 2 / 21 / 22

Container volume [l]

50

Power kW]

4,0

Protection class [IP]

65

Suction volume max. [M³ / h]

454

Negative pressure max. [Mbar]

-270

Filter

AK / H / H

Main filter area [m²]

2,1

Suction connection 1 [mm]

DN60

Empty weight kg]

105

Sound pressure level 2 [dB (A)]

that. 72

Length [mm]

that. 1200

Width (mm]

that. 700

Height [mm]

that. 1250

1 reducible

2 measured at a distance of 1 m ± 2 dB (A)

Downloads

Data sheet

Data sheet

Download
Operating manual

Operating manual
